61 11... Installing repair cable for reversing camera

NOTE: Work is shown by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.

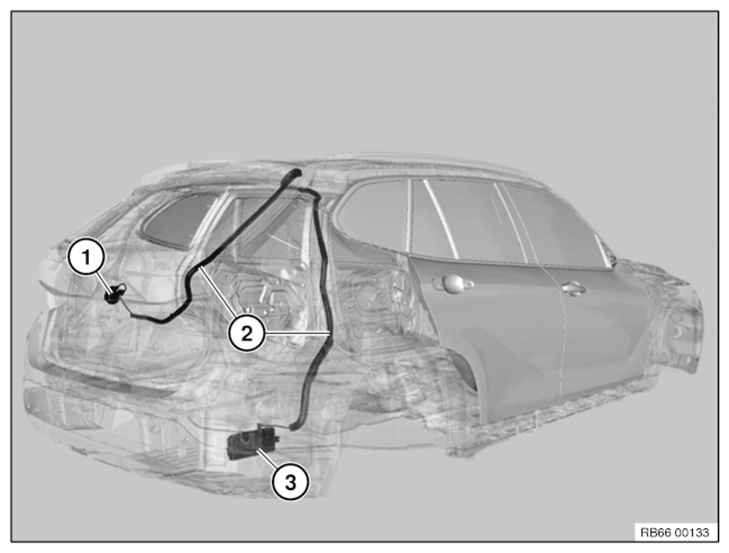

Fig 1: Identifying Reversing Camera, Wiring Harness And TRSCV Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim panels.

Lay repair cable from reversing camera (1) along wiring harness (2) up to TRSVC control unit (3, middle slot) and secure sufficiently.

After successful completion of function check , detach start and end of faulty cable at first mounting point.
