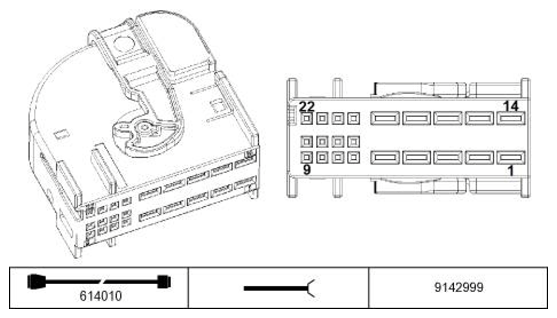

Driver's Seat Module X13534 Connector End View
Pin Assignments At Plug Connector X13534
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not occupied | |
| 2 | A | Signal Drive unit, driver's seat angle adjustment | Drive unit, driver's seat angle adjustment |
| 3 | A | Signal Drive unit, driver's seat height adjustment | Drive unit, driver's seat height adjustment |
| 4 | -- | Not occupied | |
| 5 | A | Signal Drive unit, driver's seat forward/backward adjustment | Drive unit, driver's seat forward/backward adjustment |
| 6 | -- | Not occupied | |
| 7 | E | Signal, Hall sensor Drive unit, driver's seat angle adjustment | Drive unit, driver's seat angle adjustment |
| 8 | E | Signal, Hall sensor Drive unit, driver's seat height adjustment | Drive unit, driver's seat height adjustment |
| 9 | E | Signal, Hall sensor Drive unit, driver's seat forward/backward adjustment | Drive unit, driver's seat forward/backward adjustment |
| 11 | E | Signal, Hall sensor Drive unit, driver's seat angle adjustment | Drive unit, driver's seat angle adjustment |
| 12 | E | Signal, Hall sensor Drive unit, driver's seat height adjustment | Drive unit, driver's seat height adjustment |
| 13 | E | Signal, Hall sensor Drive unit, driver's seat forward/backward adjustment | Drive unit, driver's seat forward/backward adjustment |
| 14 | -- | Not occupied | |
| 15 | A | Signal Drive unit, driver's seat angle adjustment | Drive unit, driver's seat angle adjustment |
| 16 | A | Signal Drive unit, driver's seat height adjustment | Drive unit, driver's seat height adjustment |
| 17 | A | Signal Drive unit, driver's seat forward/backward adjustment | Drive unit, driver's seat forward/backward adjustment |
| 18 | A | Signal Drive unit, driver's seat forward/backward adjustment | Drive unit, driver's seat forward/backward adjustment |
| 19 | -- | Not occupied | |
| 20 | -- | Not occupied | |
| 21 | -- | Not occupied | |
| 22 | -- | Not occupied |
