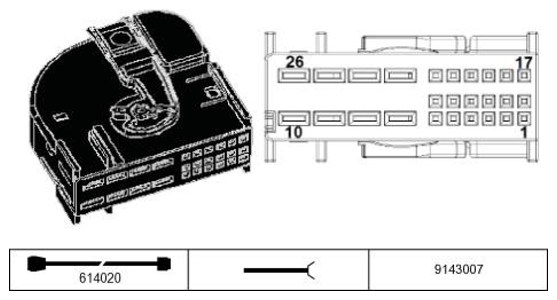

Driver's Seat Module SX13532A Connector End View
Pin Assignments At Plug Connector X13532
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal Backrest lock switch, driver | Backrest lock switch, driver |
| 2 | M | Ground Easy Entry switch, driver's side | Easy Entry switch, driver's side |
| 3 | E | Signal, Hall sensor Drive, driver's seat backrest angle adjustment | Drive, driver's seat backrest angle adjustment |
| 4 | E | Signal, Hall sensor Drive, driver's seat head restraint adjustment | Drive, driver's seat head restraint adjustment |
| 5 | -- | Not occupied | |
| 6 | -- | Not occupied | |
| 7 | A | Signal Drive, driver's seat backrest angle adjustment | Drive, driver's seat backrest angle adjustment |
| 8 | A | Signal, motor, head restraint adjustment | Drive, driver's seat head restraint adjustment |
| 9 | -- | Not occupied | |
| 10 | -- | Not occupied | |
| 11 | -- | Not occupied | |
| 12 | -- | Not occupied | |
| 13 | E | Signal, Hall sensor Drive, driver's seat backrest angle adjustment | Drive, driver's seat backrest angle adjustment |
| 14 | E | Signal, Hall sensor Drive, driver's seat head restraint adjustment | Drive, driver's seat head restraint adjustment |
| 15 | -- | Not occupied | |
| 16 | -- | Not occupied | |
| 17 | M | Ground Backrest lock switch, driver | Backrest lock switch, driver |
| 18 | E | Signal Easy Entry switch, driver's side | Easy Entry switch, driver's side |
| 19 | E | Signal Easy Entry switch, driver's side | Easy Entry switch, driver's side |
| 20 | -- | Not occupied | |
| 21 | -- | Not occupied | |
| 22 | -- | Not occupied | |
| 23 | A | Signal Drive, driver's seat backrest angle adjustment | Drive, driver's seat backrest angle adjustment |
| 24 | A | Signal, motor, head restraint adjustment | Drive, driver's seat head restraint adjustment |
| 25 | -- | Not occupied | |
| 26 | -- | Not occupied |
