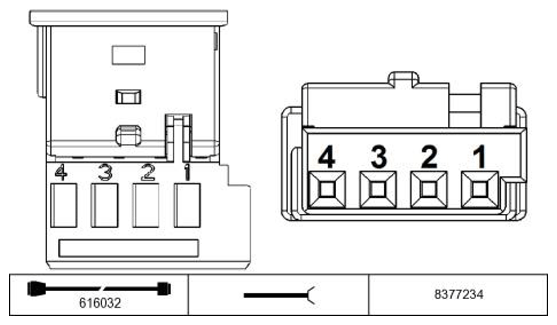

Controller X10387 Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector X10387
| Pin |
Type |
Description /Signal type |
Connection /Measuring notes |
| 1 |
E |
up to 2007_08 Supply, terminal 30G |
Fuse F13 |
| 1 |
E |
from 2007_09 Supply, terminal 30G |
Fuse F27 |
| 2 |
M |
Ground |
Ground point |
| 3 |
E/A |
CAN bus high |
CAN bus connector |
| 4 |
E/A |
CAN bus low |
CAN bus connector |
