General Electrical System - Repair -- M3 Convertible
>>
Windscreen Washer System
>>
61 61... Overview of windscreen wiper and washer system
61 61... Overview of windscreen wiper and washer system

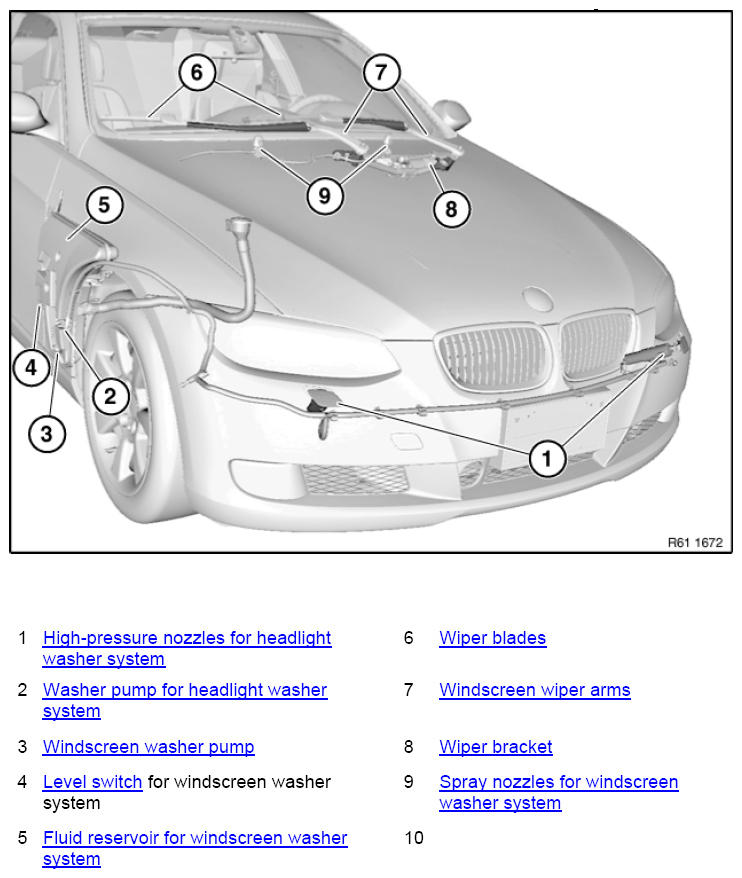

Fig 1: Overview Of Windscreen Wiper And Washer System
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
