61 42... Removing and installing/replacing DC/DC converter

NOTE: DC/DC converter in vehicles with automatic start-stop function.
There are two versions:

Depending on the equipment, one or both versions are installed in the M3

Necessary preliminary work:

Unlock fasteners (1) from below and slide upwards approx. 10 mm.

Unlock locks (2) in direction of arrow.

Remove cover (3).

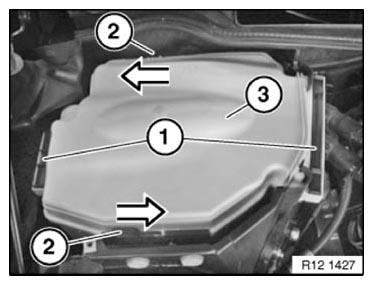

Fig 1: Identifying Cover And Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Diesel engine vehicles (without additional bracket):

Release lugs in direction of arrow.

Remove DC/DC converter (1) by pulling upward. Disconnect plug connection (2).

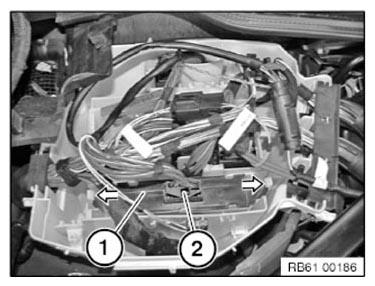

Fig 2: Removing DC/DC Converter - With Additional Bracket (Diesel Engine Vehicles)

Courtesy of BMW OF NORTH AMERICA, INC.

Petrol engine vehicles (with additional bracket):

Release lugs in direction of arrow.

Remove DC/DC converter (1) by pulling upward. Disconnect plug connection (2).

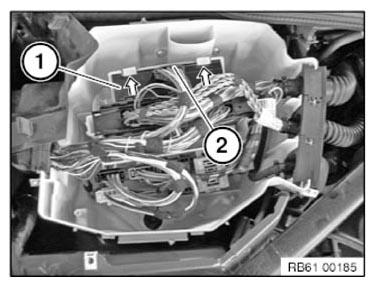

Fig 3: Removing DC/DC Converter - With Additional Bracket (Petrol Engine Vehicles)

Courtesy of BMW OF NORTH AMERICA, INC.

M3:

Release tabs in direction of arrow and remove DC/DC converter with additional bracket (1) upward. Disconnect plug connection (2).

Release tabs in direction of arrow and remove DC/DC converter without additional bracket (3) upward. Disconnect plug connection (4).

IMPORTANT: Do not mix up plug connections (2, 4)!

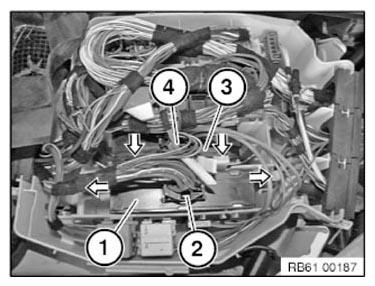

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
