61 31 198 Replace controller chrome ring

Special tools required:

• 00 9 340

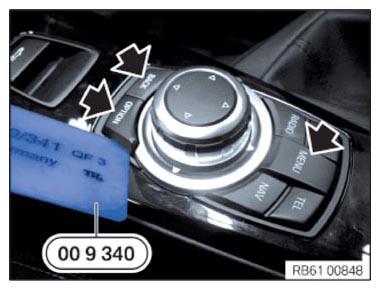

Lever out "OPTION", "BACK", "MENU" buttons with special tool 00 9 340 .

Fig 1: Removing OPTION, BACK, MENU Buttons Using Special Tool 00 9 340

Courtesy of BMW OF NORTH AMERICA, INC.

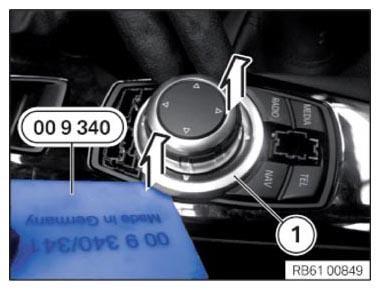

Lever out chrome ring (1) from latch mechanisms with special tool 00 9 340 and remove upwards.

Installation note:

Retaining lugs on controller must not be damaged.

Fig 2: Removing Chrome Ring From Latch

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the controller.
