61 31 195 Removing and installing (replacing) front controller (from 09/2008)

IMPORTANT: Risk of damage!
Before dismantling it is imperative to note whether the controller is installed with a version before or after 09/2008!

NOTE: The number of buttons and shape of controller can vary depending on vehicle type.

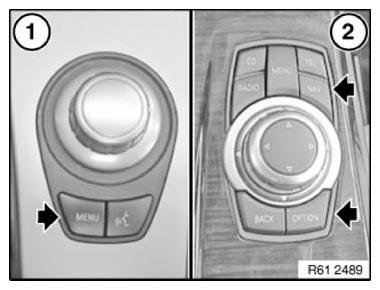

Before 09/2008: Controller (1) has buttons on bottom only .

After 09/2008: Controller (2) has buttons top and bottom .

Fig 1: Locating Controller Buttons

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: These repair instructions describe the removal and installation (replacement) of controller (2)!

IMPORTANT: Risk of damage!
The button for the controller must not be removed!

Necessary preliminary tasks:

IMPORTANT: Risk of damage!

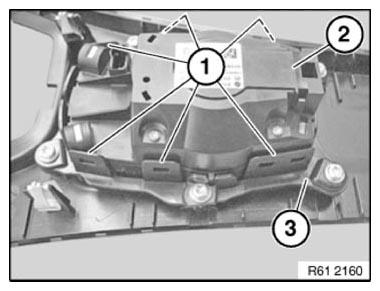

Carefully raise catches (1) on controller holder (3) and remove controller (2) towards top.

Installation note:

Make sure controller (2) is correctly engaged in controller holder (3).

Fig 2: Identifying Raise Catches, Controller And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
