61 31 133 Removing and installing/replacing AV connection socket

Special tools required:

Necessary preliminary tasks:

IMPORTANT: Wiring harness must not be damaged.

Slide special tool 00 9 317 under storage compartment (1) and press AV connection socket (2) upwards out of storage compartment (1).

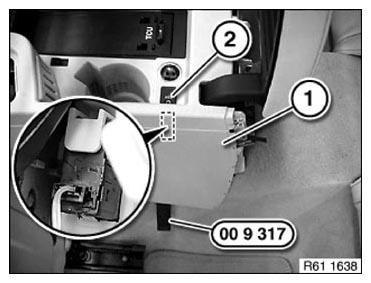

Fig 1: Sliding Special Tool 00 9 317 Under Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Feed AV connection socket (2) upwards out of storage compartment (3).

Disconnect plug connection (1) and remove AV connection socket (2).

Installation:

Locks (4) must not be damaged.

Make AV connection socket (2) is correctly seated in storage compartment (3).

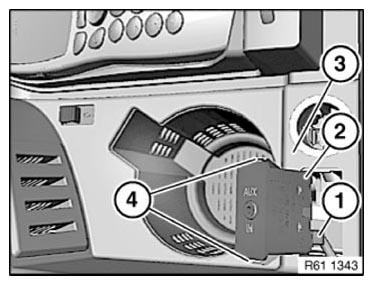

Fig 2: Identifying AV Connection Socket

Courtesy of BMW OF NORTH AMERICA, INC.
