61 31 008 Removing and installing/replacing steering-column switch cluster

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.
Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.

Necessary preliminary tasks:

Remove steering wheel
Remove STEERING COLUMN SHROUD LOWER SECTION
If necessary, remove switch for steering column adjustment

WARNING: Do not twist the coil spring cassette (1)!

NOTE: The COIL SPRING CASSETTE (1) may be replaced separately, if necessary!

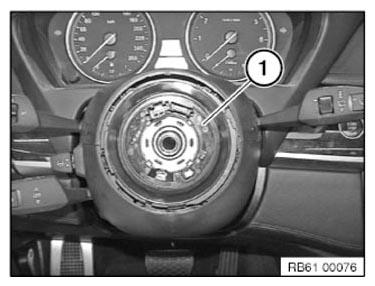

Fig 1: Identifying Coil Spring Cassette

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

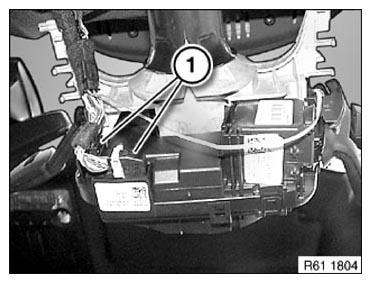

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 61 31 8AZ .

Remove steering-column switch cluster in direction of arrow.

Installation note:

The steering column switch cluster is installed in reverse sequence.

Carry out steering angle sensor adjustment.

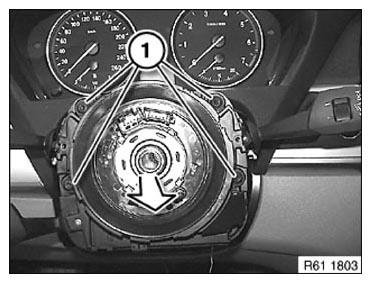

Fig 3: Removing Steering-Column Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove volute spring cassette
Carry out VEHICLE PROGRAMMING/ENCODING
NOTE:
- If replacement of the steering column switch cluster is initiated via Progman, the steering column switch cluster is coded indirectly via the DSC control unit
- If coding is cancelled, first adjust the steering angle sensor; this makes a brand-new steering-column switch cluster coding-compatible again if necessary
- Then code the DSC control unit again
Carry out steering angle sensor adjustment
NOTE:
- If steering angle sensor adjustment is cancelled, first code the DSC control unit
- Then adjust the steering angle sensor again
Vehicles with active steering:
- Steering angle sensor is adjusted by means of INITIAL OPERATION/ADJUSTMENT of active front steering
- If necessary, proceed in accordance with instructions
