61 13... Socket of tab connector housings

Unlock hooks (1) with special tool 61 1 360 and push plug housing out of the socket.

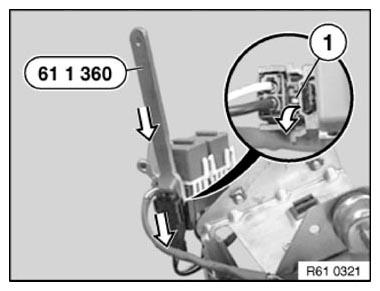

Fig 1: Unlocking Hooks Using Special Tool 61 1 360
G09895795Courtesy of BMW OF NORTH AMERICA, INC.
