61 13... Inline plugs, 8-, 12-pin, System D2.5

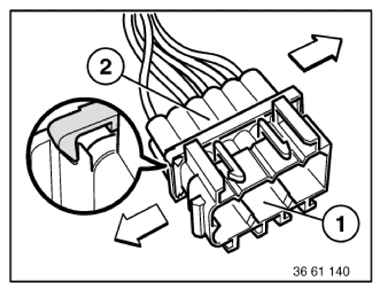

Move connector upper section (1) and the connector lower section (2) against each other in direction of arrow.

Fig 1: Moving Connector Upper And Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

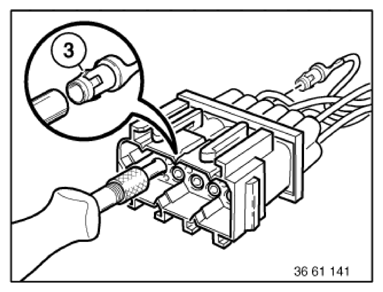

With special tool 61 1 132 (press-out tool) press back arrester hook (3) of appropriate contact and pull out cable with contact.

Fig 2: Pressing Back Arrester Hook

Courtesy of BMW OF NORTH AMERICA, INC.
