61 13... Main relay connector for DME

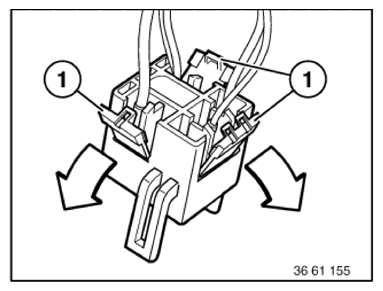

Open locking clamp (1) for the corresponding cable.

Fig 1: Opening Locking Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

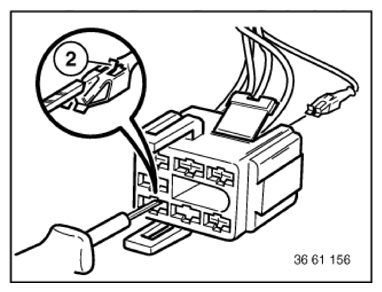

With special tool 61 1 136 or 61 1 137 (pressing-off tool), press back retaining hooks (2) of appropriate contact and pull out cable with contact.

Fig 2: Pressing Back Retaining Hooks Of Appropriate Contact

Courtesy of BMW OF NORTH AMERICA, INC.
