61 13... Crimping stop parts

Special tools required:

• 12 1 080
• 12 1 081
• 12 1 083

1. Crimping butt connectors and contact sleeves for comb connectors up to 2.5 mm
2. Crimping butt connectors and contact sleeves for comb connectors larger than 2.5 mm 2

   SI 2 07 05 233

3. Crimping contact sleeves for 4 mm ²  comb connectors and ignition cable contacts

   Use special tool kit 12 1 080 to attach ignition cable contacts and crimp 4 mm² contact sleeves for comb connectors.

   • 12 1 081 (hand pliers)
   • 12 1 083 (nest)

   SPECIAL TOOLS FOR WIRING HARNESS REPAIRS .

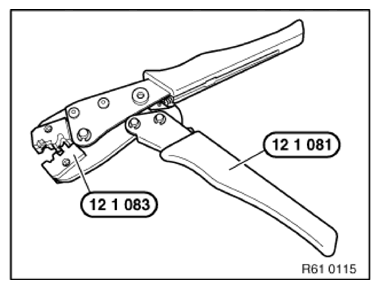

   Fig 1: Attaching Ignition Cable Contacts Using Special Tool Kit 12 1 080

   Courtesy of BMW OF NORTH AMERICA, INC.

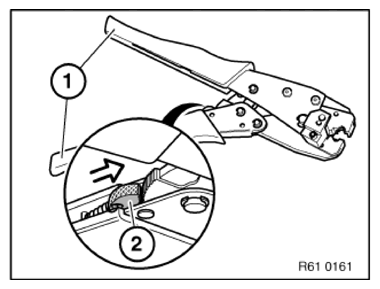

   Release special tool 12 1 081:

   Squeeze grips (1) lightly and push release lever (2) in direction of arrow.

   Or:

   Compress handles until limit position, hand pliers unlock automatically.

   Fig 2: Squeezing Grips Lightly And Push Release Lever

   Courtesy of BMW OF NORTH AMERICA, INC.

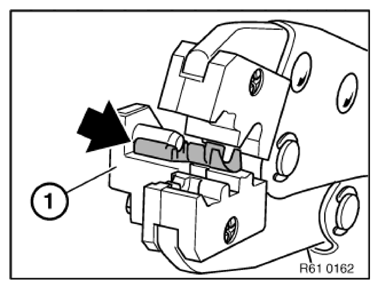

   Place 4 mm² contact sleeve in nest with anti-twist safeguard (1) as far as possible.

   Fig 3: Placing 4 mm2 Contact Sleeve In Nest With Anti-Twist Safeguard

   Courtesy of BMW OF NORTH AMERICA, INC.

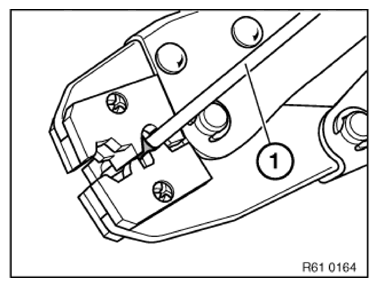

   Preload contact by squeezing matrix in crimping tool. Grip contact (1) firmly only, do not crimp.

   Fig 4: Identifying Grip Contact

   Courtesy of BMW OF NORTH AMERICA, INC.
   NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION  from cables.

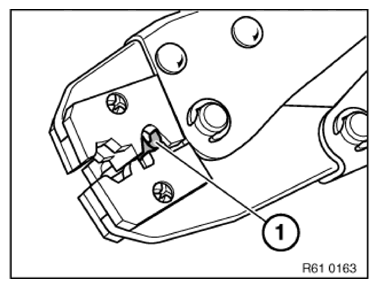

   Insert stripped end of wire (7) in the contact. Ensure insulation and stripped wire end are correctly laid in contact.

   Compress crimping tool to limit position.

   Crimping tool unlocks automatically.

   Take contact out of crimping tool.

   Fig 5: Inserting Stripped End Of Wire In Contact

   Courtesy of BMW OF NORTH AMERICA, INC.
4. Checking crimping

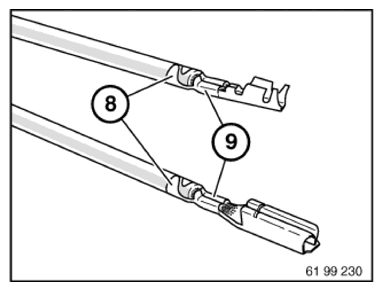

   Check insulation crimping (8) and wire crimp (9) against following illustrations to ensure crimps are correctly located.

   NOTE: Illustration shows butt connectors and contact sleeves for comb connectors knocked on one side. The crimping procedure is identical here.
   Fig 6: Check Insulation Crimping And Wire Crimp

   Courtesy of BMW OF NORTH AMERICA, INC.

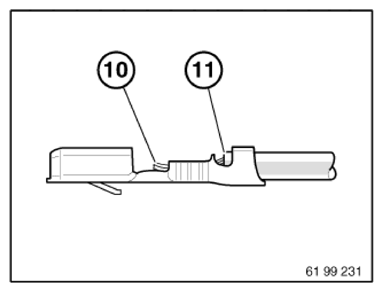

   Correct crimping:

   Visible conductor end (10).

   Visible insulation end (11).

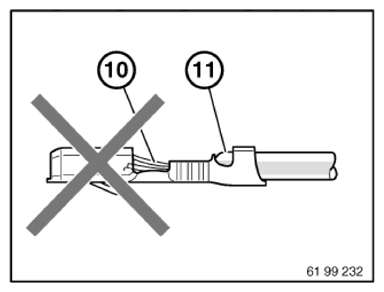

Incorrect crimping:

Conductor end (10) inserted too far.

Insulation end (11) in wire crimp.

If necessary, repeat crimping with a new contact.

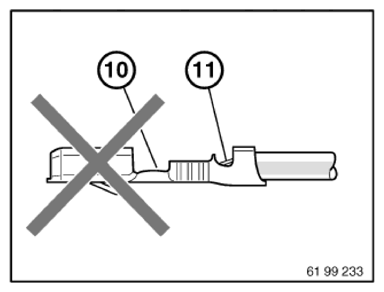

Incorrect crimping:

Conductor end (10) not visible.

Insulation end (11) not visible.

If necessary, repeat crimping with a new contact.
