61 14... Removing and installing/replacing engine compartment B+ terminal

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Necessary preliminary tasks:

NOTE: Work is shown on the E82 N52N by way of example. There may be differences in detail in the case of other vehicle models.

Unclip covers (1) and release nuts underneath. Tightening torque 61 12 4AZ .

Remove battery positive cables.

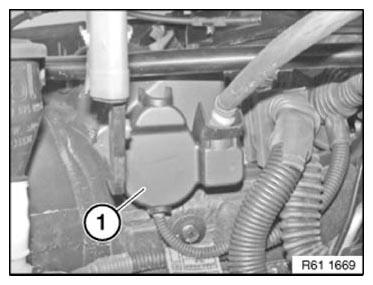

Fig 1: Identifying Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1).

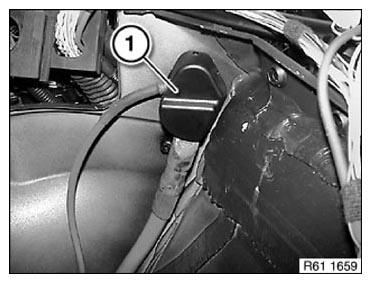

Fig 2: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1). Tightening torque 61 12 4AZ .

Remove battery positive cables.

Release locks (2) and remove frame (3) towards rear from B+ terminal.

Unclip B+ terminal and remove towards front.

Installation:

Make sure frame (3) engages correctly in B+ terminal.

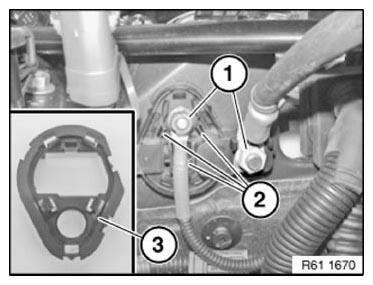

Fig 3: Identifying Locks, Frame And Nuts
