65 77 770 Removing and installing (replacing) rollover controller

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Release expansion rivets (1).

Fold back insulating mat (2).

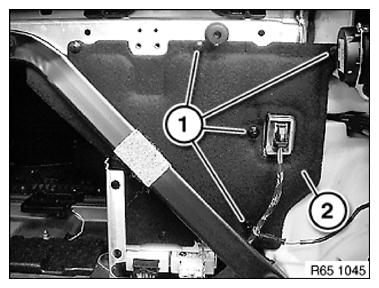

Fig 1: Identifying Insulating Mat And Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release screws (2).

Remove rollover controller.

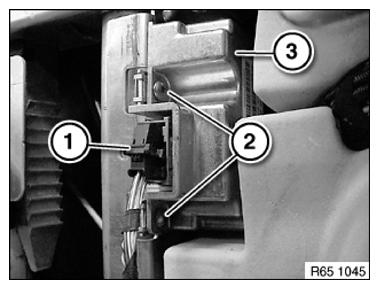

Fig 2: Identifying Rollover Controller And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Function check with BMW diagnosis system:
