Telephone and BMW Service

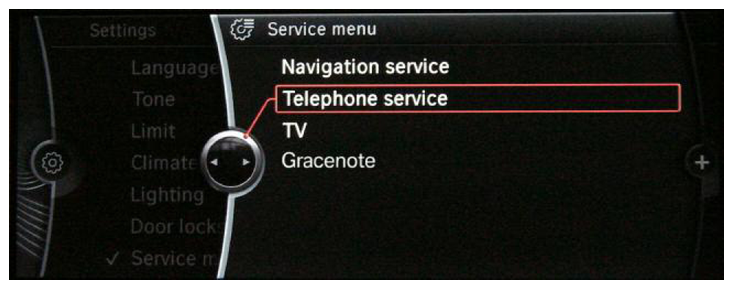

CIC SERVICE MENU DESCRIPTION CHART
| Telephone | Screen content (example) | Explanation |
|---|---|---|
| BT Name | BMW 57502 | Bluetooth name of BMW vehicle for pairing |
| NAD | 51 dBm | GSM signal level of built-in telephone module |
| MCC/MNC | 262 01 | Mobile Country Code + Mobile Network Code; unique code for country and network provider with which the phone is currently registered. |
| ICC ID | 89490200000537151529 | Integrated Circuit identifier = Identifier of SIM card |
| IMEI | 351231004373763 | International Mobile Equipment Identity (IMEI) is a unique 15-digit serial number of the telephone transceiver |
| Registration status | Registered | Registered = SIM card enabled and logged into network; Not registered = SIM card enabled but currently no |
| Reception | ||
| Signal strength | 20/100 | Relative signal strength of the built-in telephone module in percent (max 100 %) |
| GPS T/D | 14:41:57 27.05.2008 | Assist cannot be enabled if time and date are incorrect |
NOTE:
Although it appears in the Service menu, TV is not available on US vehicles.
