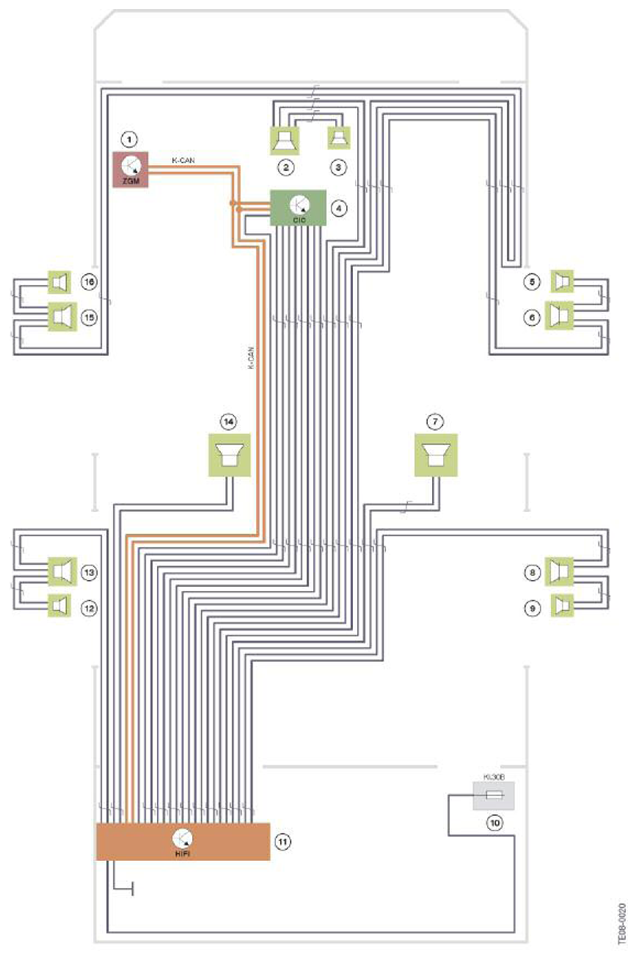

HiFi Speaker System Circuit Diagram
INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Central gateway module |
| 2 | Mid-range speaker, front center |
| 3 | Tweeter, front center |
| 4 | Car Information Computer |
| 5 | Tweeter, front right door |
| 6 | Mid-range speaker, front right door |
| 7 | Woofer, under right front seat |
| 8 | Mid-range speaker, rear window shelf, right |
| 9 | Tweeter, rear window shelf, right |
| 10 | Rear power distribution box |
| 11 | HiFi amplifier |
| 12 | Tweeter, rear window shelf, left |
| 13 | Mid-range speaker, rear window shelf, left |
| 14 | Woofer, under left front seat |
| 15 | Mid-range speaker, front left door |
| 16 | Tweeter, front left door |
| K-CAN | Body CAN |
