Connecting External AV Devices
External devices can be connected to the RSE control unit via the AV inputs. External devices can also be connected via the AUX-In connection or the USB-audio interface (6FL) in the center console. Connected video devices are recognized automatically.
NOTE:
The connection is automatically deactivated after unplugging the external video device. A blue image may be shown on the rear screen if the connection is not deactivated automatically.
The corresponding input must be activated when a pure audio device is connected.
Follow the following steps to connect an external device:
- Switch on the rear seat entertainment system.
- Open the flap on the RSE control unit when connecting to the AV inputs.
- Fold open the center armrest when connecting to the AUX-In connection or USB-audio interface (6FL).
- Connect the external audio device to the corresponding input and switch on.

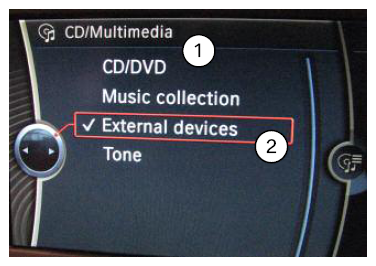

- Select the "CD/Multimedia" menu item (1) in the Main Menu.
- Then select the "External devices" menu item (2) in the "CD/Multimedia" menu (1).

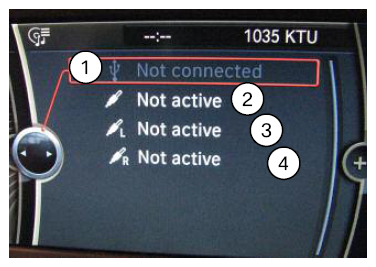

The available connections and their status are now shown:
- USB-audio interface (1)
- AUX-In connection, Center console (2)
- RSE control unit, AV input, left (3)
- RSE control unit, AV input, right (4).
NOTE:
Once an external device has been connected to the RSE it remains connected until it is turned off or disconnected.
