13-6050 Adapter

0491340 136050 Adapter Minimum set: Mechanical tools MW

NOTE: (adapter set for BMW DIS) For measuring oil and fuel pressures [Released]

Storage Location

SI number

01 12 94 (859)

Consisting of:

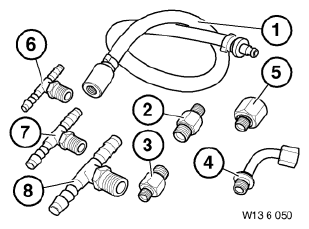

Fig 1: Identifying Adapter (0491340)

Courtesy of BMW OF NORTH AMERICA, INC.

4 = 0495067 T-piece
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12 [Not available separately]
1 = 0491341 Hose
NOTE: (Connecting hose) For connecting reducers 13 6 052, 13 6 053, 13 6 55 and adapters 11 4 050, 11 4 160, 11 4 170, 13 5 131 to BMW DIS [Released]
2 = 0491342 Adapter
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12 [Not available separately]
3 = 0491343 Adapter
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12 [Not available separately]
4 = 0491344 Adapter
NOTE: (Adapter) [Released]
5 = 0491345 T-piece
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12 [Not available separately]
6 = 0491346 T-piece
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12 [Not available separately]
7 = 0491347 T-piece
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12 [Not available separately]
