13-3060 Measuring device

0491259 133060 Measuring device MW

Consisting of:

1. = 0491260 Pressure gauge
   NOTE: (Pressure gauge 0...25 bar) [released]
2. = 0491261 Valve
   NOTE: (Valve) 2-way valve, engine: all, except S50, S54, N73 [released]
3. = 0491262 Line
   NOTE: (Connection lines (2 x)) For check of fuel and oil pressure [released]
4. = 0491263 Line
   NOTE: (Connection line) With T-piece for L-Jetronic, all except N73 [released]

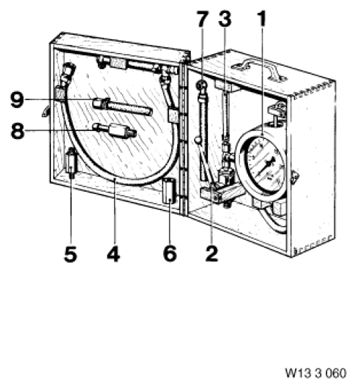

   Fig 1: Identifying Measuring Device (0491259)

   Courtesy of BMW OF NORTH AMERICA, INC.
5. = 0491264 Connector
   NOTE: (Connection piece, distributor) All except N73 [released]
6. = 0491265 Connector
   NOTE: (Connection piece warm-up sensor) All except N73 [Released]
7. = 0491266 Hose
   NOTE: (Connecting hose) For checking fuel pump fuel delivery rate, all except N73 [Released]
8. = 0491267 Connector
   NOTE: (Connection piece, distributor) All except N73 [released]
9. = 0491268 Connector
   NOTE: For warm-up sensor with hose, all except N73 [released]
