13-0290 Line

0496707 130290 Line Minimum set: Mechanical tools MW

In conjunction with: 13 3 060; 11 4 310

NOTE: Two fuel lines. Auxiliary lines for 13 3 060. For fuel pressure check in all direct injectors in comb. with IMIB and 100 bar sensor. [Released]

Storage Location

A29

B29

A30

SI number

01 27 09 (598)

Consisting of:

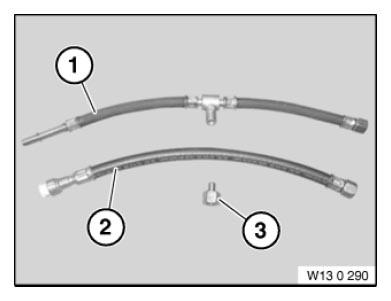

Fig 1: Identifying Line (0496707)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0496826 Fastener
NOTE: Available as part of complete tool set 13 0 290 (0496707) only. [Not available separately]
2 = 0496825 Line
NOTE: Available as part of complete tool set 13 0 290 (0496707) only. [Not available separately]
1 = 0496824 Line
NOTE: With connection for 13 3 060 or 11 4 310. Available as part of complete tool set 13 0 290 (0496707) only. [Not available separately]
