Electronic Night Vision Module A80*2B Connector End View

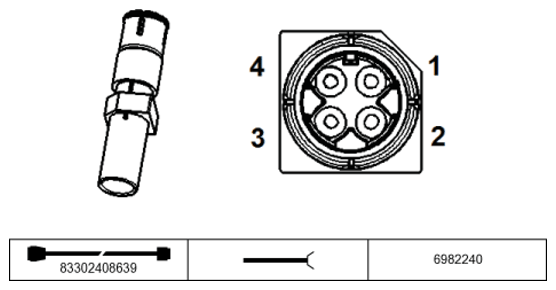

Fig 1: Electronic Night Vision Module A80*2B Connector End View

Courtesy of BMW OF NORTH AMERICA, INC.

Pin Assignments At Plug Connector A80*2B

Pin	Type	Description /Signal type	Connection /Measuring information
0	M	Shielding	Night vision camera
1	E/A	Local CAN bus signal	Night vision camera
2	E	Video signal	Night vision camera
3	E/A	Local CAN bus signal	Night vision camera
4	E	Video signal	Night vision camera
