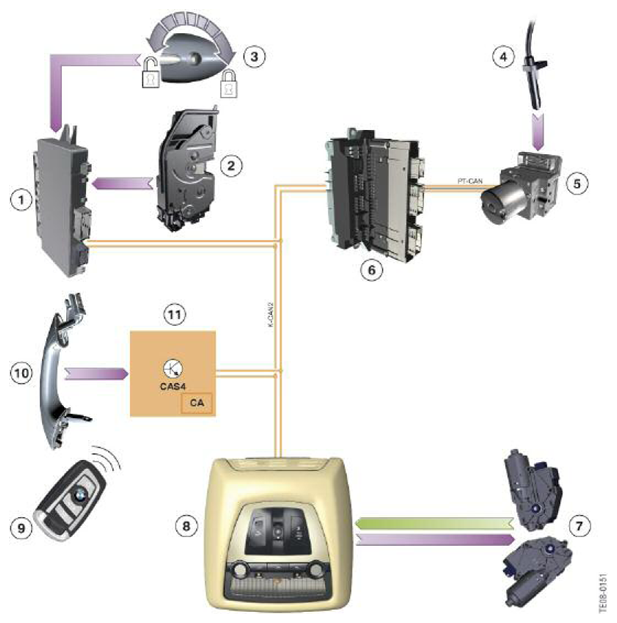

Input/output slide/tilt sunroof
COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Footwell module FRM |
| 2 | Door contacts (4x) in the vehicle doors |
| 3 | Driver's door lock barrel |
| 4 | Wheel speed sensor |
| 5 | Dynamic stability control |
| 6 | Junction Box electronics JB PT-CAN Powertrain CAN |
| 7 | Slide/tilt sunroof motors |
| 8 | Roof control module |
| 9 | Identification transmitter |
| 10 | Outer door handles, driver's side and passenger side |
| 11 | Car Access System 4 CAS 4 |
| K-CAN2 | Body-CAN2 |
