Button illumination

The footwell module sends the status of the terminal 58g. The seat module receives the status of the terminal 58g via the K-CAN. The seat module passes the status of terminal 58g via the LIN bus to the memory buttons.

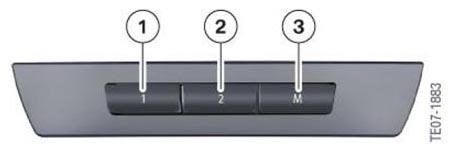

Fig 1: Identifying F01/F02 Memory Buttons On Passenger's Side

Courtesy of BMW OF NORTH AMERICA, INC.
