61-9040 Tool

0492908 619040 Tool MP

NOTE: (Tool set for repair range IV) [Discontinued]

SI number

02 02 92 (505)

Consisting of:

  1. 4 = 0495195 Die-plate
    NOTE: For crimping 2.5 mm (diameter.) sleeves [Released]

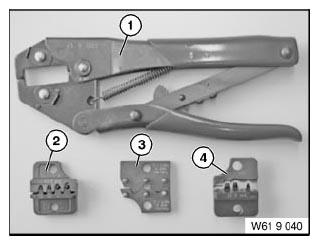

    Fig 1: Identifying Tool (0492908)
    G04739566Courtesy of BMW OF NORTH AMERICA, INC.
  2. 1 = 0492909 Pliers
    NOTE: (hand pliers without matrix) [Released]
  3. 2 = 0492910 Die-plate
    NOTE: For crimping butt connectors and contact tubes for comb connectors (0.35 - 0.5" 0.75 - 1.00" 1.5" 2.5) [Released]
  4. 2 = 0492911 Pliers
    NOTE: (insulation strippers with wire cutter) Replaced by "MultiStrip 10" insulation strippers with BMW order number 81 69 0 416 257. [Discontinued]
  5. 4 = 0493149 Die-plate
    NOTE: For crimping aerial connector (plug connection, aerial cable/radio) [Released]
