MSA function is deactivated by

• Deactivate MSA by means of button (1) in passenger compartment
• Open seat belt buckle and driver's door

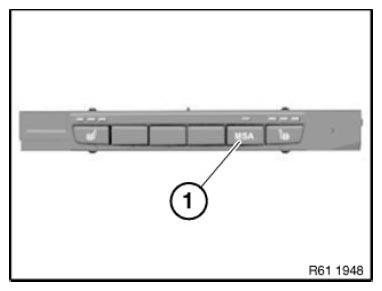

  Fig 1: Identifying MSA Button

  Courtesy of BMW OF NORTH AMERICA, INC.
• Open engine bonnet/hood and ensure that engine hood/bonnet contact is not in workshop mode
• Workshop mode

  A = 10 mm

• Basic setting (engine hood/bonnet open)

B = 7 mm

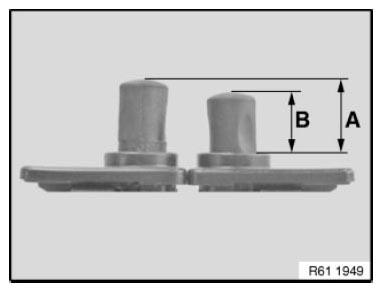

Fig 2: Identifying Engine Bonnet/Hood Position (Workshop Mode And Basic Setting)

Courtesy of BMW OF NORTH AMERICA, INC.

To make sure that the engine hood/bonnet contact is at the basic setting, if necessary press the hood/bonnet contact up to the limit position before starting work and slowly release.
