Wiper Switch on the Steering Column Stalk
The wiper switch on the steering column stalk with the following functions is located in the steering column switch cluster:
- Intermittent wipe
- Wipe in stages 1 and 2
- Windscreen washer
- Headlight washer
- Switch for the rain/lights/solar/condensation sensor
- Indicator for activated rain/lights/solar/condensation sensor.
The wiper switch has sliding contacts that are located on the circuit board for the steering column switch cluster. The switch functions are realized by means of these sliding contacts.
The interval switch is a four-stage switch. Each stage produces different input values in the steering column switch cluster. The input values are evaluated for setting the sensitivity of the rain/lights/solar/condensation sensor or the intermittent wipe stage.
The button for the rain/lights/solar/condensation sensor is designed as an ground-switching button. It is required for switching on the rain/lights/solar/condensation sensor. The LED is illuminated when the rain/lights/solar/condensation sensor is activated.

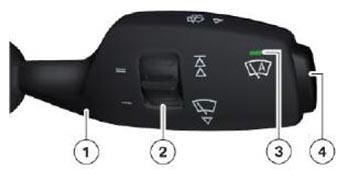

| Index | Explanation |
|---|---|
| 1 | Wiper switch on the steering column stalk |
| 2 | Wiper-stage switch for sensitivity of the rain sensor/intermittent wipe stage |
| 3 | Rain/lights/solar/condensation sensor LED |
| 4 | Rain/lights/solar/condensation sensor button |
Function matrix for the wiper/washer system steering column stalk
| Operation | Initial state | Function | Design |
|---|---|---|---|
| Push upwards briefly | OFF | Wipe 1 | Returns to initial position |
| Continuous wipe, stage 1 | Wiper stage 2 | Returns to initial position | |
| Continuous wipe, stage 2 | Wiper stage 2 | Returns to initial position | |
| Push upwards | OFF | Wiper stage 2 | Returns to initial position |
| Continuous wipe, stage 1 | Wiper stage 2 | Returns to initial position | |
| Continuous wipe, stage 2 | Wiper stage 2 | Returns to initial position | |
| Push downwards briefly | OFF | Flick wipe | Returns to initial position |
| Continuous wipe, stage 1 | Intermittent wipe | Returns to initial position | |
| Continuous wipe, stage 2 | Wiper stage 1 | Returns to initial position | |
| Pull briefly towards the driver | OFF | Windscreen wash | Returns to initial position |
| Turn the knurled wheel up/down | Sensitivity of the rain/lights/solar/condensation sensor Intermittent wipe stage | Sets the sensitivity of the automatic wiping or intermittent wiping | Engages in position |
Function matrix of the steering column stalk for the wiper/washer system with automatic wiping by the rain/lights/solar/condensation sensor
| Operation | Initial state | Function | Design |
|---|---|---|---|
| Push upwards briefly | OFF | Wiper stage 1 | Returns to initial position |
| Automatic mode | Wiper stage 1 | Returns to initial position | |
| Continuous wipe, | Wiper stage 2 | Returns to initial stage 1 position | |
| Continuous wipe, | Wiper stage 2 | Returns to initial stage 2 position | |
| Push upwards | OFF | Wiper stage 2 | Returns to initial position |
| Automatic mode | Wiper stage 2 | Returns to initial position | |
| Continuous wipe, | Wiper stage 2 | Returns to initial stage 1 position | |
| Continuous wipe, | Wiper stage 2 | Returns to initial stage 2 position | |
| Push downwards briefly | OFF | Flick wipe | Returns to initial position |
| Automatic mode | Flick wipe* | Returns to initial position | |
| Continuous wipe, | Intermittent wipe | Returns to initial stage 1 position | |
| Continuous wipe, | Wiper stage 1 | Returns to initial stage 2 position | |
| Pull briefly towards the driver | OFF | Windscreen wash | Returns to initial position |
| Briefly push the automatic wipe button in an axial direction | Automatic wipe switched off | Automatic wipe ON | Returns to initial position |
| Automatic wipe switched on | Automatic wipe OFF | Returns to initial position | |
| Turn the knurled wheel up/down | Sensitivity of the rain/lights/solar/condensation sensor | Sets the sensitivity of the automatic wiping or | Engages in position |
