Optical sensor

The optical sensor is located on a circuit board soldered onto the board of the steering column switch cluster. The major components of the measuring system are:

• LED
• Light-conducting element
• Code disc
• Photo-transistors.

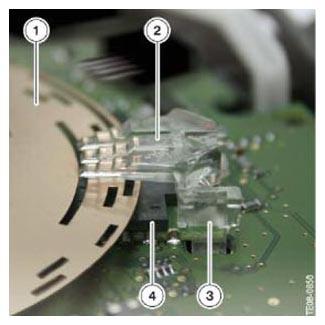

  Fig 1: Identifying Photo-Transistors, Code Disc, Light-Conducting Element And LED

  Courtesy of BMW OF NORTH AMERICA, INC.
