Steering angle detection

The code disc enables a 4-digit digital code to be generated for each light field. The 12- digit digital code is formed by lining up the 4-digit digital codes. The steering-angle speed can be ascertained from the changes to the individual digital codes.

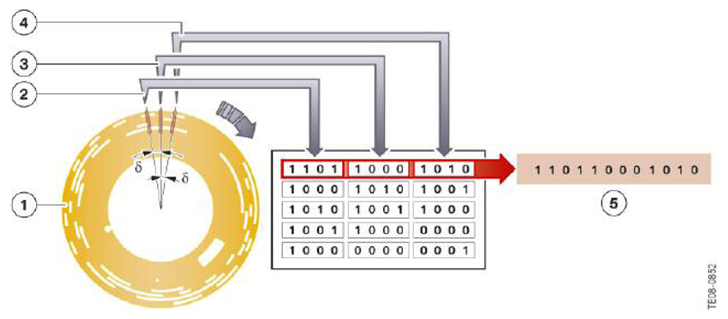

Fig 1: Operating Principle Of Optical Steering Angle Detection

Courtesy of BMW OF NORTH AMERICA, INC.
