The Steering Column Switch Cluster as Standard Equipment: Notes

The steering column switch cluster (SZL) consists of, among other things, the following components:

• Electronic steering column switch cluster module
• Coil-spring assembly
• Steering-column switch for turn indicators
• Steering column switch for wipers
• Optical steering-angle sensor.

The steering column switch cluster (SZL) can only be replaced as a complete  unit. The individual components such as the coil-spring assembly or steering column stalk can not  be removed or replaced.

The design and the components of the steering column switch cluster are explained in brief in the following.

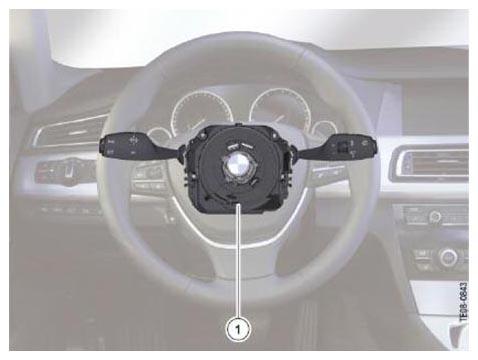

Fig 1: Installation Location Of Steering Column Switch Cluster F01/F02

Courtesy of BMW OF NORTH AMERICA, INC.
