Luggage Compartment Lighting

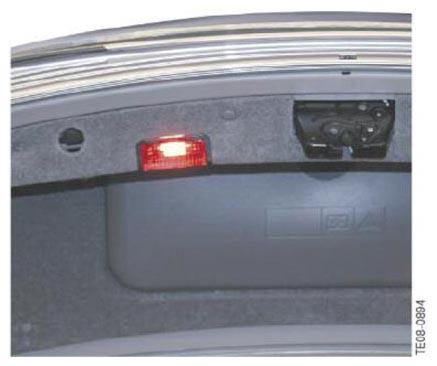

Two lights are used for the luggage compartment lighting. One of the lights is located on the underside of the rear parcel shelf. The other light is integrated in the tailgate. The light in the tailgate has two lenses. One of the lenses is colored red. When the tailgate is open, that lens serves as an indicator lamp for vehicles behind. The second lens directs the light downwards into the luggage compartment.
A 10 W bulb is used for each of the luggage compartment lights.
