Attach wire pull handles

Feed in cutting wire (1) in cutting handle (2) and clamping element (3) as illustrated.

Move back cutting handle (2) over clamping element (3) and trap wire end (4).

Danger of injury!

Wire end (4) must not protrude out of cutting handle (2).

Cutting handle (2) can be secured with suction cup (5) to the vehicle window or body during each of the work operations. This prevents damage to the paint.

Fit second wire pull handle to other wire end.

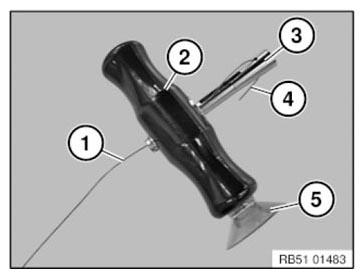

Fig 1: Identifying Cutting Handle And Suction Cup
G08472068Courtesy of BMW OF NORTH AMERICA, INC.

Perform repair work with the aid of a second person.

Cutting wire (4) must be guided in cutting direction at an acute as possible angle (>45°) to adhesive bead (1).

Cut through adhesive bead (1) by pulling cutting handle (2) and at the same time providing counter support with cutting handle (3).

Pull back cutting wire (4) with cutting handle (3) and make sure that cutting wire (4) is always held under tension.

Cut through remaining adhesive bead in the same way.

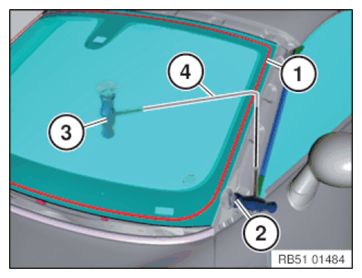

Fig 2: Cutting Adhesive Bead Using Cutting Handle And Wire
G08472069Courtesy of BMW OF NORTH AMERICA, INC.
