System Circuit Diagram for Servotronic System

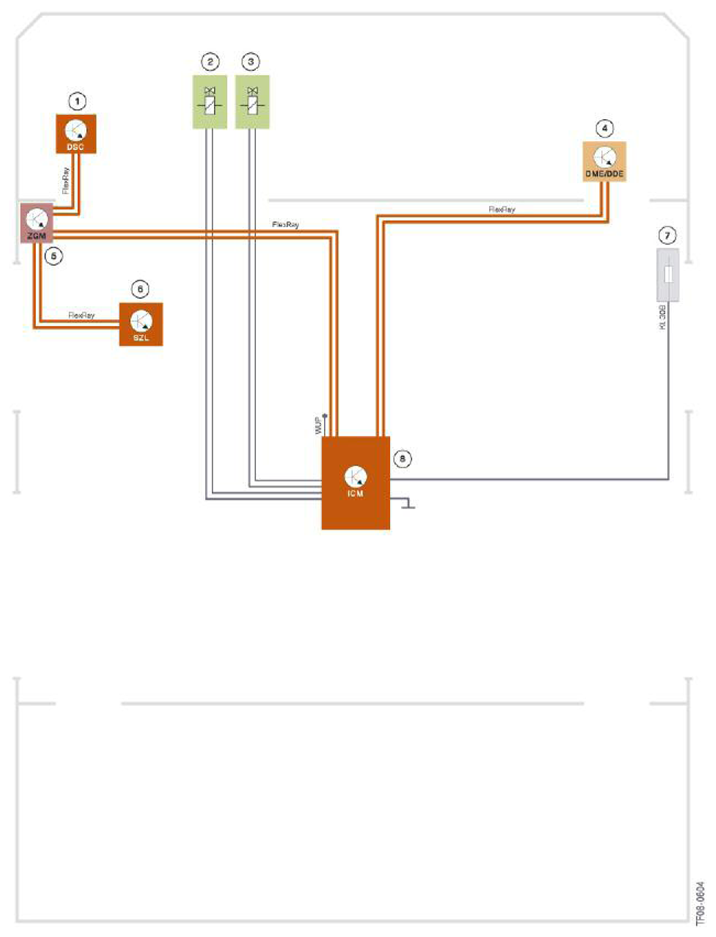

Fig 1: Servotronic System Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX REFERENCE CHART

Index	Explanation
1	Dynamic stability control
2	Electronic volumetric flow control (EVV) valve
3	Servotronic valve
4	Digital Motor Electronics
5	Central Gateway Module
6	Steering column switch cluster
7	Front power distribution box
8	Integrated Chassis Management
