Display Area of Head-up Display

The HUD size is approximately 200 mm x 100 mm with a display resolution of 480 x 240 pixels. The HUD is separated into 2 display areas. The individual fields are "optically" separated in the image so that they can be identified more easily.

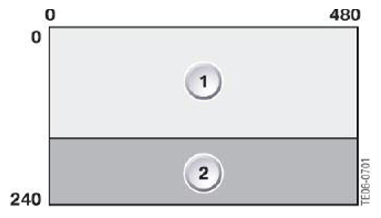

Fig 1: Display Area On Head-Up Display

Courtesy of BMW OF NORTH AMERICA, INC.

The upper area shows navigation information and CC messages in the form of symbol, bar display and text.

The lower area shows speed-related displays in the form of unit, current speed and cruise control.
