Controls on the Steering Wheel
There are blocks of buttons in the steering wheel on the left and right.
The controls for the cruise control function are located on the left-hand side of the steering wheel.
The controls for operation of the radio and telephone functions are on the right.

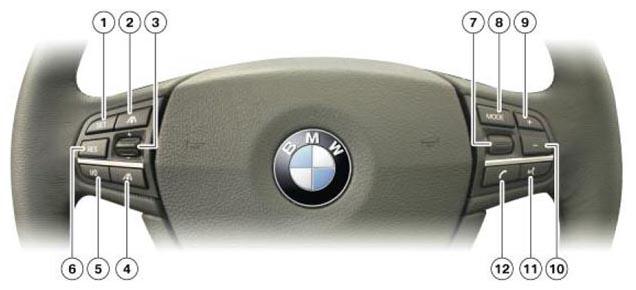

STEERING WHEEL CONTROLS REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Set button, Save speed |
| 2 | Reduce distance button |
| 3 | Toggle switch + - Change speed |
| 4 | Increase distance button |
| 5 | Enable/disable, interrupt DCC/ACC |
| 6 | Resume/call-up stored speed button |
| 7 | Knurled wheel Select radio station |
| 8 | MODE button Switch audio sources |
| 9 | Toggle switch + Change volume |
| 10 | Toggle switch - Change volume |
| 11 | Hands-free button |
| 12 | Telephone button |
