System Circuit Diagram F01/F02: Notes

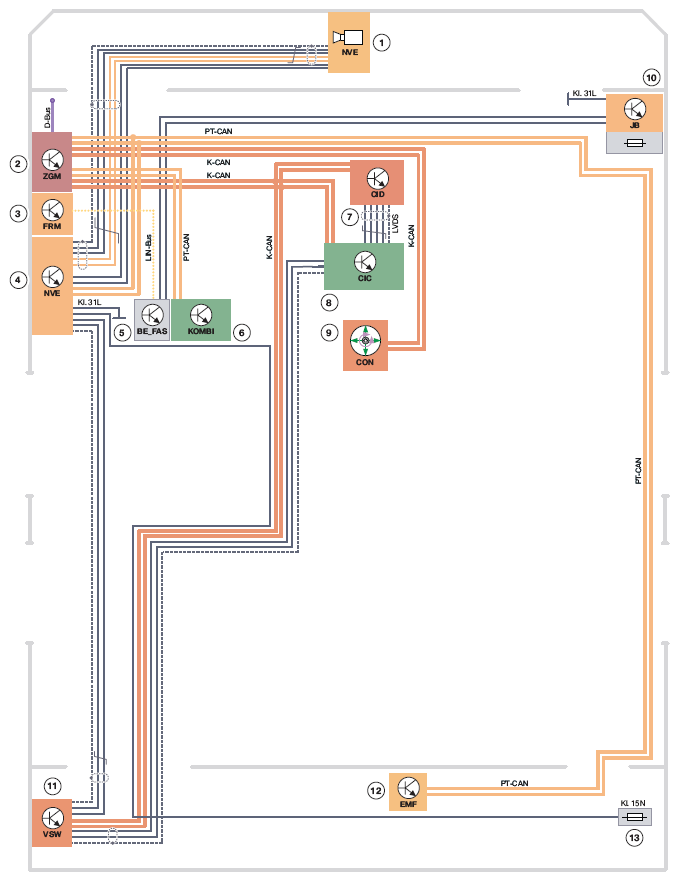

SYSTEM CIRCUIT DIAGRAM LEGENDS
| Index | Explanation |
|---|---|
| 1 | Night Vision 2 camera |
| 2 | Central gateway module (ZGM) |
| 3 | Footwell module (FRM) |
| 4 | Night Vision 2 control unit (NVE) |
| 5 | Control panel, driver assist systems (BEFAS) |
| 6 | Instrument cluster (KOMBI) |
| 7 | Central information display (CID) |
| 8 | Car Information Computer (CIC) |
| 9 | Controller (CON) |
| 10 | Junction box (JB) |
| 11 | Video switch (VSW) |
| 12 | Electromagnetic parking brake (EMF) |
| 13 | Power distribution box, rear right |
| PT-CAN | Powertrain controller area network |
| K-CAN | Body controller area network |
| LIN-Bus | Local Interconnect Network bus |
| D-Bus | Diagnosis bus |
| KI.31L | Terminal 31, ground |
| KI.15N | Terminal 15, after running (voltage) |
