86 10... Replacing license plate light

Release screws (1) and remove license plate light (2) from mounting.

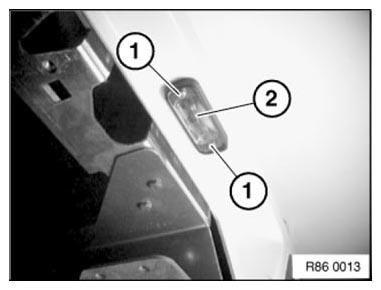

Fig 1: Identifying License Plate Light With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect flat connector (1) in direction of arrow.

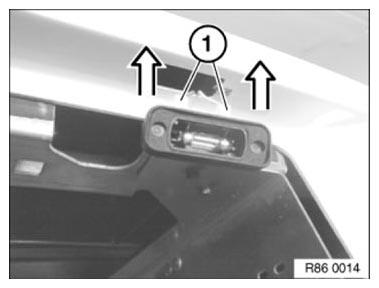

Fig 2: Disconnecting Flat Connector

Courtesy of BMW OF NORTH AMERICA, INC.
