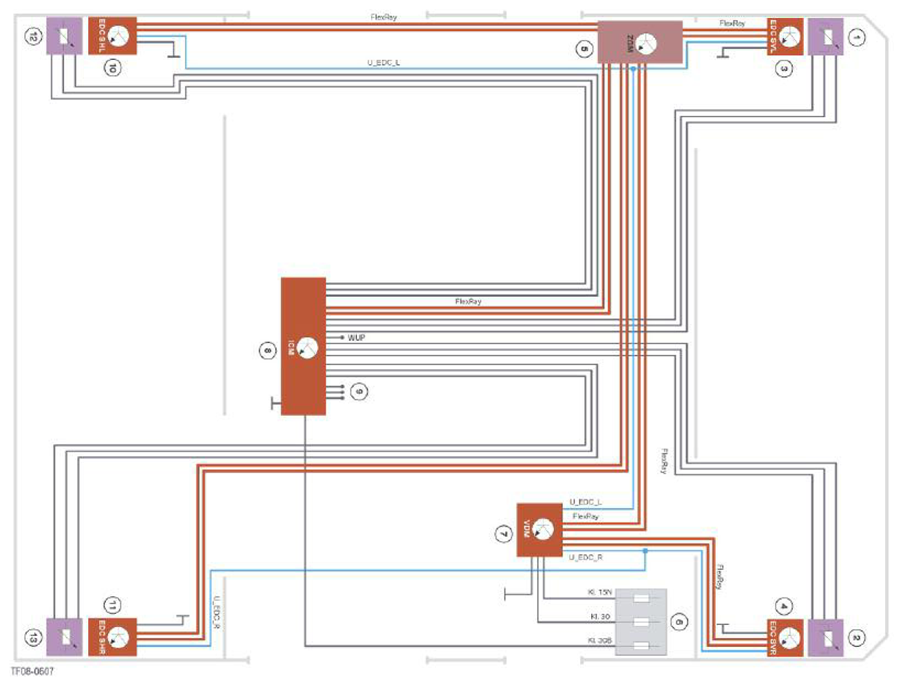

VDC System Circuit Diagram
INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Ride-height sensor, front left |
| 2 | Ride-height sensor, front right |
| 3 | Electronic Damper Control satellite, front left |
| 4 | Electronic Damper Control satellite, front right |
| 5 | Central Gateway Module |
| 6 | Front power distribution box |
| 7 | Vertical Dynamics Management |
| 8 | Integrated Chassis Management |
| 9 | Connection for handling setting switch |
| 10 | Electronic Damper Control satellite, rear left |
| 11 | Electronic Damper Control satellite, rear right |
| 12 | Ride-height sensor, rear left |
| 13 | Ride-height sensor, rear right |
