Ride-height Sensors: Notes

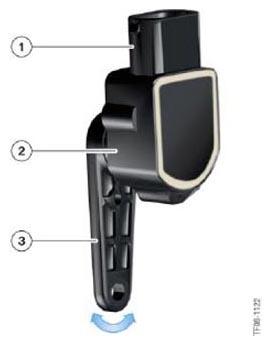

Fig 1: Identifying Ride-Height Sensors Components
G06924946Courtesy of BMW OF NORTH AMERICA, INC.
RIDE-HEIGHT SENSOR COMPONENT REFERENCE CHART

Index Explanation
1 Connector
2 Housing
3 Arm (pivoting)
