Installation Location

The ICM control unit is installed in the center console behind the sensor for the crash safety module. This means that the position of the control unit and its integrated sensor system in the vehicle, near to its center of gravity, is ideal from the point of view of driving dynamics. The mounting points on the body are precisely determined and are measured when the vehicle is manufactured and must not be replaced with any other mounting points.

The housing of the control unit is connected to the metal body of the transmission tunnel with four screws and spacer sleeves made of aluminum. The control unit must be mounted on the vehicle body free of play as otherwise vibrations may be induced in the control unit housing which would severely impair the operation of the integrated sensor system. A secondary task of this mounting is to conduct heat away from the control unit to the body.

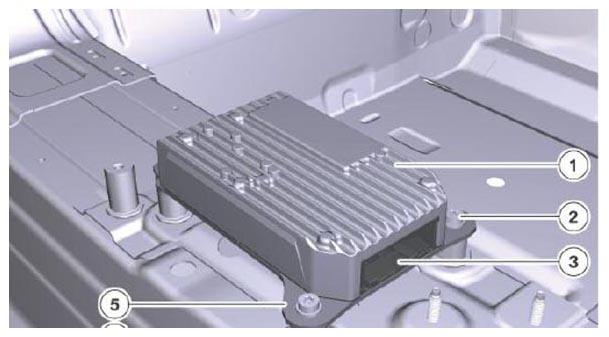

Fig 1: Identifying ICM Control Unit Components
G06924943Courtesy of BMW OF NORTH AMERICA, INC.
INDEX REFERENCE CHART

Index Explanation
1 Upper section of housing
2 Mounting bolt
3 Connector
4 Spacer sleeve
5 Lower section of housing

For the mounting to be able to perform these tasks, the following points must be observed when mounting and replacing the ICM control unit:

NOTE: Only screws and spacer sleeves that are in perfect condition may be used. Deformed or damaged fixing elements must not be used.
The mounting screws in the reamed holes must be tightened first, followed by the other two screws. The tightening torque specified in the repair instructions must be observed without fail.
A check must then be carried out to make sure the control unit is mounted securely and free of play.
To ensure sufficient heat dissipation and to avoid vibrations, the sides and top of the control unit housing must not come into contact with other vehicle components. Instead, the spaces provided around the control unit as part of the engineering design must always remain free of other components.

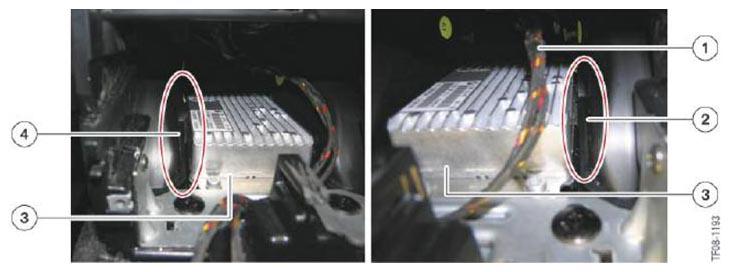

Fig 2: Identifying ICM Control Unit Installation Situation
G06924944Courtesy of BMW OF NORTH AMERICA, INC.
INDEX REFERENCE CHART

Index Explanation
1 Wiring harness, e. g. for rear display
2 The compartment on the right next to the ICM control unit must remain unoccupied
3 ICM control unit
4 The compartment on the left next to the ICM control unit must remain unoccupied

The wiring harness that runs in the center console in particular must never be routed in, or even pushed into, the spaces on either side of the ICM control unit.
