Components of Vertical Dynamics Control (standard equipment)

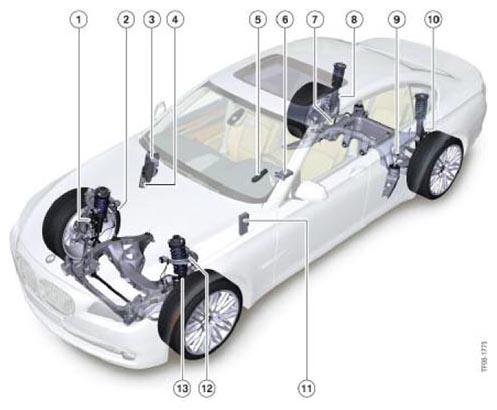

Fig 1: Identifying Vertical Dynamics Control Components (Standard Equipment)

Courtesy of BMW OF NORTH AMERICA, INC.

VERTICAL DYNAMICS CONTROL COMPONENT REFERENCE CHART

Index	Explanation
1	EDC_SVR
2	Ride-height sensor, front right
3	Front power distribution box
4	VDM
5	Handling setting switch
6	ICM
7	Ride-height sensor, rear right
8	EDC_SHR
9	Ride-height sensor, rear left
10	EDC_SHL
11	ZGW
12	Ride-height sensor, front left
13	EDC_SVL
