86 21... Replacing inside light power cable: Installation

Carefully remove traces of old adhesive with a scraper. Use standard heat gun adhesive as adhesive.

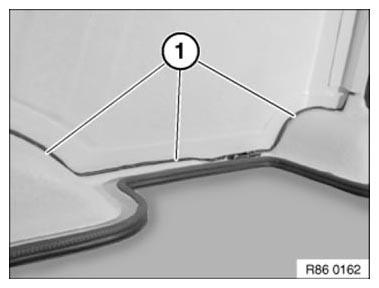

Fig 1: Identifying Adhesive Bonds Of Power Cable On Hood Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully remove adhesive bonds of power cable (1) from hood surface.

Carefully remove traces of old adhesive with a scraper. Use standard heat gun adhesive as adhesive.

Fig 1: Identifying Adhesive Bonds Of Power Cable On Hood Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Remove flat connectors (1). Strip cable ends (2) and connect to a new cable. Feed cable connection through opening (3).

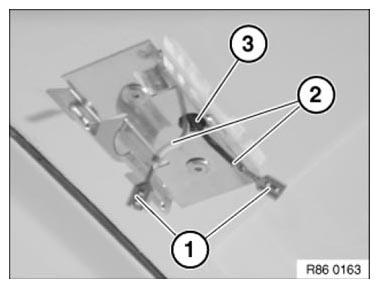

Fig 2: Identifying Flat Connectors And Cable Ends

Courtesy of BMW OF NORTH AMERICA, INC.

Lay new power cable with old power cable through duct (1).

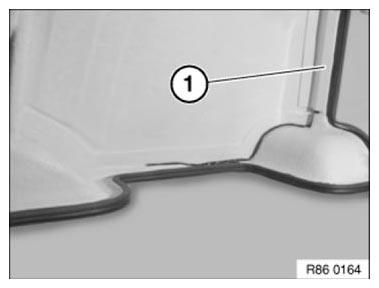

Fig 3: Identifying Power Cable Duct

Courtesy of BMW OF NORTH AMERICA, INC.
