66 53 170 Removing and installing/replacing control unit for Top-/Rear-/Side-View Camera

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Unlock plug connections (2) and disconnect.

Unscrew nuts (1).

Remove control unit (3) in direction of arrow.

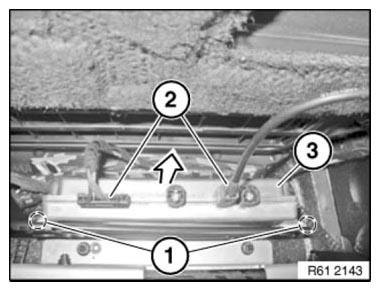

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
