CIC Components: Notes
The components listed above are defined as separate or modular. These components are attached to the main/complete head unit.
Of these components, only the faceplate remains a serviceable and replaceable component. Failure of any other internal component will necessitate the replacement of the entire CIC unit once proper authorization has been obtained through PuMA.
The functions of the individual components are briefly described in the following pages.
The installation and removal instructions for the individual components and the complete CIC control unit are available in TIS (Technical Information System) or the workshop system ISTA.

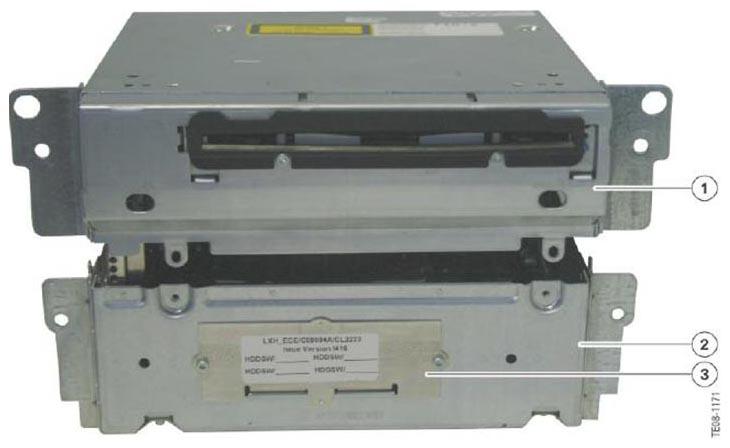

INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | DVD/CD player including CIC housing cover |
| 2 | Car Information Computer |
| 3 | Hard Drive Disk |
