CIC Application Board with Processors
The application board accommodates the main processor (Central Processing Unit) and the main memory modules (Random Access Memory) for the CIC. These components are soldered into the board and cannot be replaced.

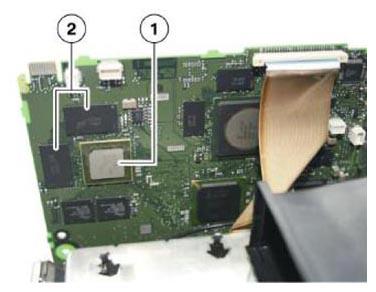

INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | CPU - Central processing unit |
| 2 | Main memory (RAM) of the CIC |
