FM Rejector Circuit
The two rejector circuit modules for FM are located on the left and right of the rear window.
One rejector circuit is intended for the power supply of the lower section of the rear window.
The second circuit is for the upper section of the rear window defogger which is powered by the AM restrictor described in the following pages.

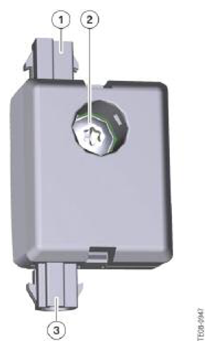

INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Rejector circuit on left side Terminal 31, rear window: lower section of rear window |
| 2 | Threaded ground connection to vehicle body |
| 3 | Rejector circuit on left-side Terminal 31, connection, vehicle wiring harness |
INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Rejector circuit on right side Terminal 30, rear window: lower section of rear window |
| 2 | Threaded ground connection to vehicle body |
| 3 | Rejector circuit on right side Terminal 30, connection, vehicle wiring harness |
