Schematic Circuit Diagram for the Voice Activation System with TCU

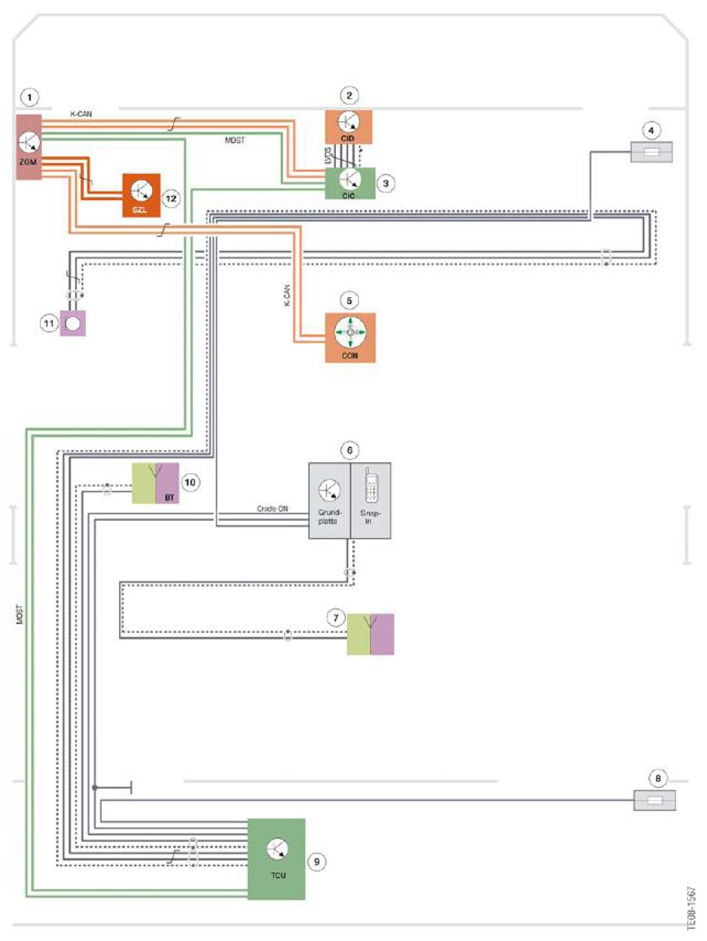

Fig 1: Circuit Diagram For Voice Activation System With TCU
G06925432Courtesy of BMW OF NORTH AMERICA, INC.
INDEX REFERENCE CHART

Index Explanation
1 Central gateway module (ZGM)
2 Central information display (CID)
3 Car Information Computer (CIC)
4 Fuse in the junction box
5 Controller (CON)
6 Baseplate with snap-in adapter
7 Roof antenna
8 Fuse in fuse carrier at rear
9 Telematics control unit (TCU)
10 Bluetooth antenna
11 Microphone (driver's side)
12 Steering column switch cluster (SZL)

MOST signals at TCU

MOST SIGNAL FUNCTIONAL CHART

In/Out Signal Source/sink Function
Out Control signals MOST control units Controlled systems
Out Control signals CIC Display control of the CIC
Out Audio signals CIC Answer, voice input
