11 00 Mounting Engine On Assembly Stand (N55)

Special Tools Required:

00 2 300 .
11 8 541 .
11 8 542 .

IMPORTANT: Aluminum Screws/Bolts Must Be Replaced Each Time They Are Released .
Aluminum Screws/Bolts Are Permitted with and Without Color Coding (Blue).
for Reliable Identification:
Aluminum Screws/Bolts Are Not Magnetic .
Joining Torque and Angle of Rotation Must Be Observed Without Fail (Risk of Damage) .

Necessary Preliminary Tasks:

Remove ENGINE .

Use Special Tool 11 8 541 To Mount Engine On Special Tool 00 2 300 .

Mount Engine or Engine Block with Special Tool 11 8 542 On 11 8 541 .

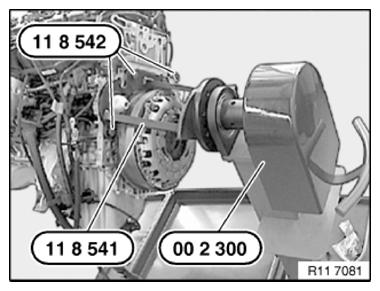

Fig 1: Mounting Engine On Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
