11 00 670 Securing Engine In Installation Position (N55 RWD)

Special Tools Required:

00 6 000
00 6 002
00 6 004
00 6 010
00 6 050

WARNING: Danger of Injury!
Observe Following Instructions Relating To Special Tool:

Prior To Each Use, Check The Special Tools for Defects, Modifications and Operational Reliability.
Damaged/Modified Special Tools Must Not Be Used!
No Changes or Modifications May Be Made To The Special Tools!
Keep Special Tools Dry, Clean and Free of Grease.

IMPORTANT: Special Tool Must Not Be Fitted When Cross-Member (1) Is Installed!

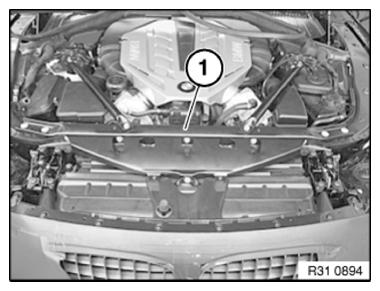

Fig 1: Identifying Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary Preliminary Tasks:

SECURING THE ENGINE COMPARTMENT LID IN THE SERVICE POSITION .
Remove ACOUSTIC COVER .
Remove TRIM PANEL for Engine Compartment Lid At Side.
Remove Underbody Protection At FRONT and REAR .

Assemble Cross-Member 00 6 000 with Special Tools 00 6 002 00 6 004, 00 6 010, 00 6 050.

Fig 2: Assembling Cross-Member Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

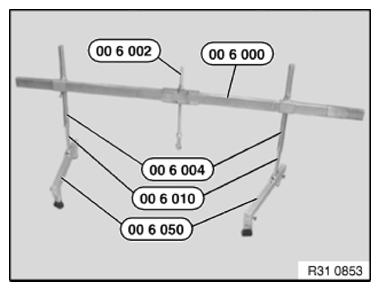

Fig 3: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

New Tool.

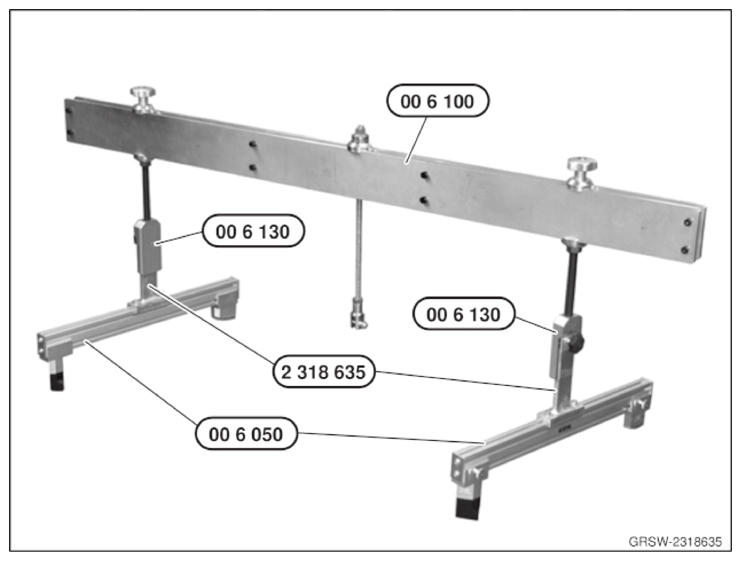

Assemble Traverse with Special Tool 00 6 050.

Graphic Shows: N63 Engine

NOTE: Contact Points (1) for Special Tool 00 6 050 Are Pictured.

Position Transverse Member with A 2Nd Person Helping On Contact Points (1).

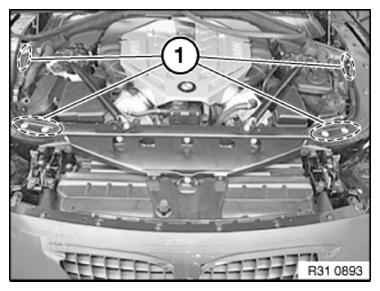

Fig 4: Identifying Contact Points for Special Tool On Transverse Member

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before Lifting The Engine, Check The Lifting Lugs for Damage (Cracks) and To Ensure They Are Seated Securely.

Screw Towing Hook (1) Into Engine Block.

Align Cross-Member So That Spindle Is Correctly Positioned Over Towing Hook.

Secure Chain To The Spindle and Suspend From Towing Hook (1).

WARNING: Danger of Injury!
Tighten Down All Screws and Nuts On Cross-Member 00 6 000.

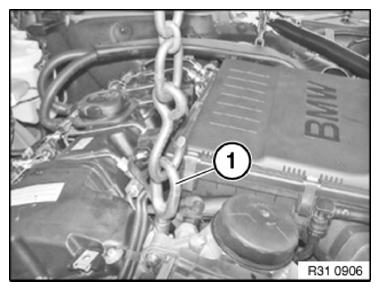

Fig 5: Identifying Towing Hook

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid A Change of Engine Position In The Transverse or Longitudinal Direction.
Always Make Sure There Is Sufficient Clearance Between The Engine (or Its Add-On Parts) and The Body.

Release Bolts (1) On Engine Mount.

Raise Engine Approx. 10 Mm with Cross Member.

IMPORTANT: Observe Installation Note!
To Ensure Play Between Engine Mount and Engine Support Arm, Lower The Engine Completely Before Tightening The Screw Connection (Engine Mount/Engine Support Arm).
Tightening torque 22 11 2AZ .

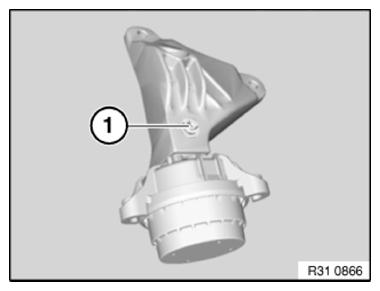

Fig 6: Identifying Right-Hand Engine Mount Bolt
